The HTC 800-series offers high performance and efficiency. The machines are powerful, yet easy to manoeuvre and handle.

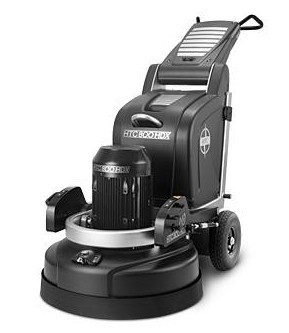

HTC 800 HDX has a powerful 15kW motor. This model is ideal for those with high demands on cutting capacity since the machine comes with 55kg of additional integrated weights. The HTC 800 HDX is a perfect choice for grinding concrete floor in accordance with the HTC Superfloor method.
Technical Data HTC 800 HDX:
|
Type |
HTC 800 HDX |
HTC 800 HDX |
|
Long |
1349 mm |
1349 mm |
|
Width |
830 mm |
830 mm |
|
High |
1225 mm |
1225 mm |
|
Weight |
510 kg |
510 kg |
|
Motor |
15 kW |
15 kW |
|
Ampere |
25 Amp |
25 Amp |
|
Voltage |
3 x 400 V |
3 x 460 V |
|
Frequency |
50 Hz |
60 Hz |
|
Grinding pressure |
240 - 260 - 332 kg |
240 - 260 - 332 kg |
|
Rpm |
450 - 1400 r.p.m |
450 - 1400 r.p.m |
|
Grinding discs |
4 x 270 mm |
4 x 270 mm |
|
Grinding diameter |
800 mm |
800 mm |
|
motor |
1 |
1 |
|
Vater tank |
26 L |
26 L |
|
Recommended dust Extraction System |
HTC 10 iAD
HTC 15 iAD |
HTC 10 iAD
HTC 15 iAD
|
HTC - The Innovators!
4 head grinder (X model)
With a 4 head grinder you get an up to 30% more effective grinding and stripping and obviously a more level floor.
Outstanding quality
HTC’s high quality means that HTC as the only company in the industry can offer a 2 year warranty on the complete machine range. Download data sheet
Flexible Grinding Cover
Together with the dust extractor it prevents dust to spread in the premises. Since HTC’s grinding covers are flexible you can grind much closer to corners and edges.
Mist cooler system
A small detail that makes a huge difference. Prevents the metal tools to overheat and significantly increase the machines stripping capacity. Read more
EZchange™
The HTC developed tool change system is quick, simple and safe. One tooling system for all HTC’s grinding machines. Read more |
